Roll Bending Machine V-1006

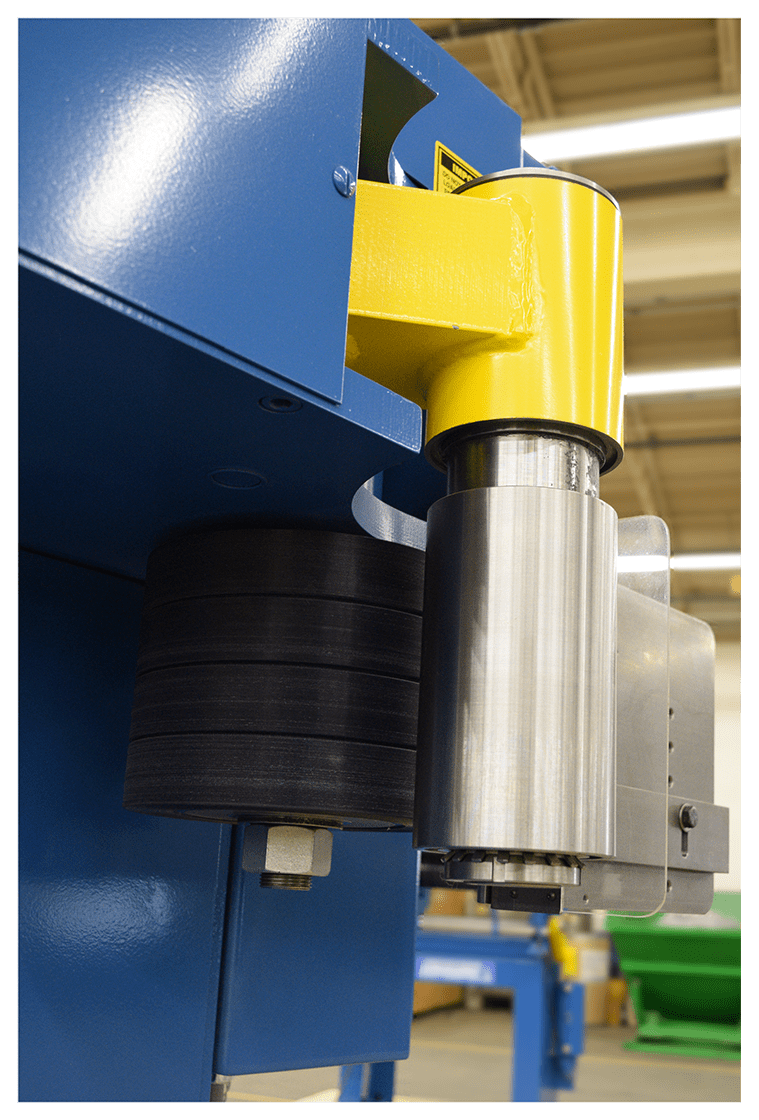

The model V-1006 has cantilevered rolls mounted in a vertical position. This unique design allows the parts to simply drop from the machine at the end of the rolling cycle, greatly increasing productivity. Its short, sturdy rolls are ideally suited for narrow parts such as clamps, brake bands, hole saws, light fixtures, etc.

We have been manufacturing this vertical roll bending unit for decades and have refined this unit to meet the demands of high production and repeated abuse. Our exclusive urethane roller allows unique rolling capabilities that other machines just cannot deliver. You will be able to roll sheet metal parts through this unit with little to no distortion. We have several optional add on accessories that can be purchased separately with this unit.

Common upgrades include conveyor systems, parts bins and custom durometer rollers and tooling to meet your production needs.

V 1006 Model 600x600 1
Model Acrotech Model Di-Acro Capacity Mild Steel Working Length of Rolls Diameter of Top Roll Diameter of Bottom Roll Rolling Speed f.p.m. Motor hp.
Std. Metric Std. Metric Std. Metric Std. Metric Std. Metric
V-1006 V 10 ga. 3.4mm 6″ 152mm 4″ 102mm 8″ 203mm 22 6.68CMPM 0.75

Below you will find one of our more popular options for our V-1006 Vertical Urethane Rolling Machine. This is a stub shaft and it is used when a smaller diameter part is needed for certain applications. The tooling is custom built based on your requirements and is easily changed out for easy fast repeatable results every time. Please contact us for questions on pricing and availability. Have an older machine of ours and would like to add the stub shaft? No problem, Just call! Click the pictures for enlarged views.

Roll Bending V-1006 Options

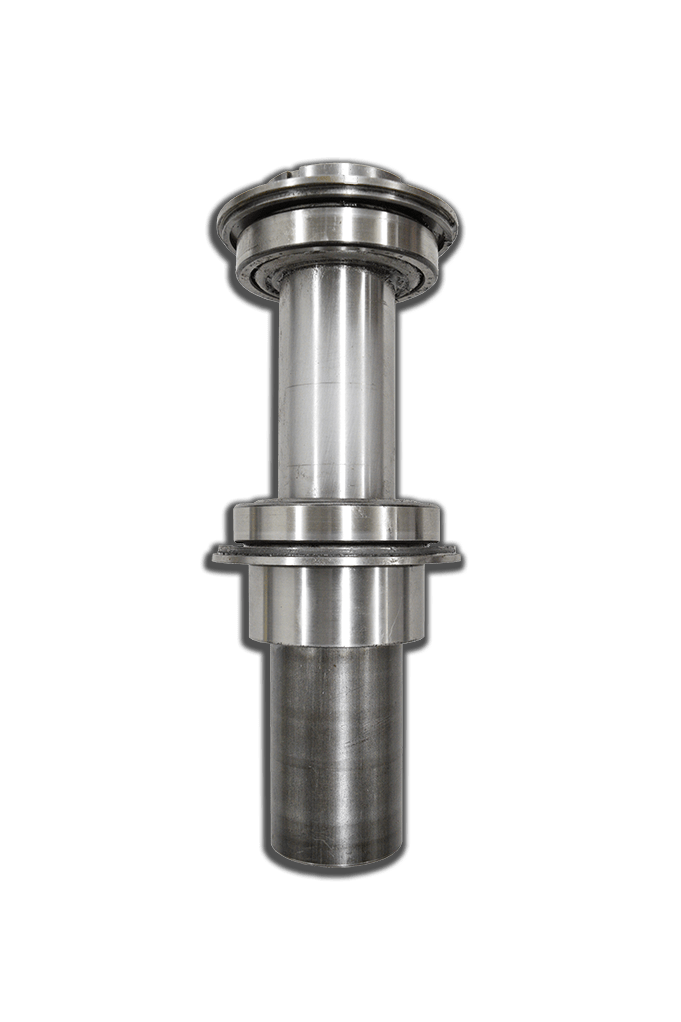

stubshaft2

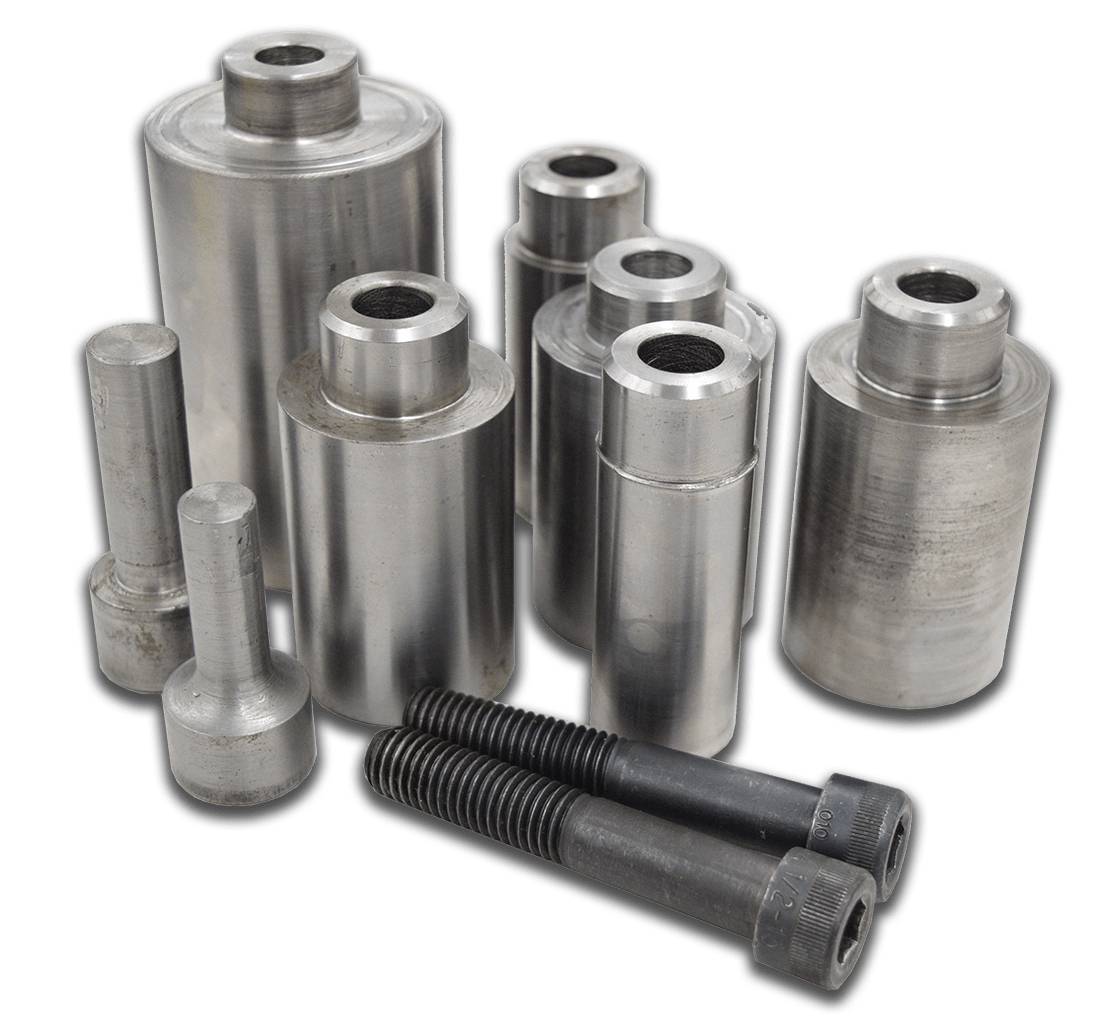

tooling1

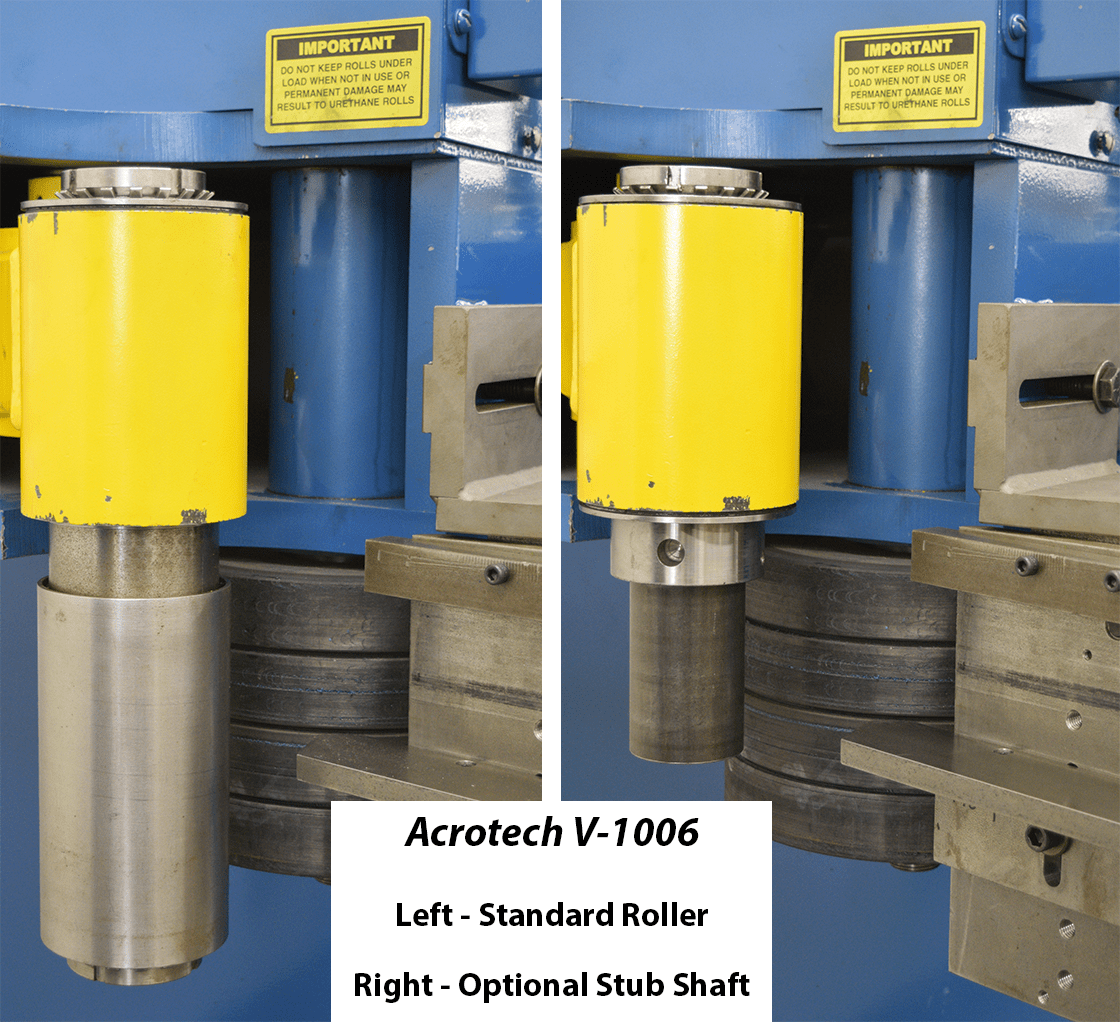

Stubshaft1
