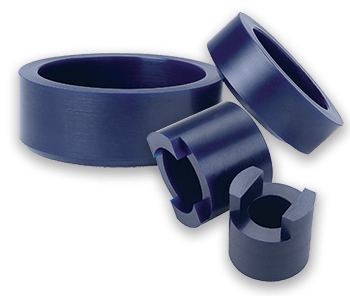

For *Wiedeman® W-20, W-30, W45, & Centrum Models. Acrotech Inc. has found a solution to metal distortion with punches and the release of the part being much easier with urethane. The repeat usage of punches and ironworkers will quickly pay for themselves with a higher completion rate. K-Prene® Urethane is some of the most resilient and durable urethane in the world. Trust nothing less than the best.
*Wiedeman® Punch Strippers are available to purchase through a quote only. We do not offer the option to purchase Wiedeman® Punch Strippers online at this time. Click Here to Request A Quote
112 Style Tooling | |||||||
Station | Shape | Face Dia. | I.D. | O.D. | Length | Part No. | Price |
B | Std. | 1-5/32″ | 31/32″ | 2″ | 1-27/32″ | 500-1453 | $9.87 |
C | Std. | 1-23/32 | 1-15/32 | 2-1/2 | 2-1/16 | 500-1455 | 11.14 |
D | Std. | 2-7/32 | 1-31/32 | 3 | 1-1/2 | 500-1456 | 11.14 |
D | 1″ sq.* | 2-7/32 | 1-31/32 | 3 | 1-1/2 | 500-1520 | 13.18 |
D | Rect.** | 2-7/32 | 1-31/32 | 3 | 1-1/2 | 500-1511 | 12.52 |
E | Std. | 2-29/32 | 3-3/32 | 4-9/32 | 1-1/2 | 500-1457 | 13.79 |
E | Rect.** | 2-29/32 | 3-3/32 | 4-9/32 | 1-1/2 | 500-1459 | 15.77 |
F | Std. | 3-11/16 | 3-3/32 | 4-9/32 | 1-1/2 | 500-1462 | 13.79 |
F | 2″ sq.* | 3-11/16 | 3-3/32 | 4-9/32 | 1-1/2 | 500-1467 | 15.77 |
F | Rect.** | 3-11/16 | 3-3/32 | 4-9/32 | 1-1/2 | 500-1526 | 15.77 |
G | Std. | 4-3/16 | 3-15/32 | 4-25/32 | 1-1/2 | 500-1463 | 15.38 |
G | Rect.** | 4-3/16 | 3-15/32 | 4-25/32 | 1-1/2 | 500-1527 | 16.81 |
K | Std. | *1″ & 2″ Squares Only. | |||||
K | Rect.** | ** 1/2″ & Narrower Rectangles Only. | |||||
114 Style Tooling | |||||||
Station | Shape | Face Dia. | I.D. | O.D. | Length | Part No. | Price |
B | Std. | 1-1/8″ | 1-1/16″ | 1-31/32″ | 2.362″ | 500-1342 | $11.19 |
C | Std. | 1-23/32 | 1-3/4 | 2-1/2 | 2-5/16 | 500-1344 | 13.79 |
D | Std. | 2-7/32 | 1-31/32 | 3 | 2-3/32 | 500-1351 | 13.79 |
D | 1″ sq.* | 2-7/32 | 1-31/32 | 3 | 2-3/32 | 500-1379 | 15.77 |
D | Rect.** | 2-7/32 | 1-31/32 | 3 | 2-3/32 | 500-1421 | 15.77 |
E | Std. | 2-29/32 | 2-31/32 | 4 | 2-3/32 | 500-1354 | 15.38 |
E | Rect.** | 2-29/32 | 2-31/32 | 4 | 2-3/32 | 500-1448 | 16.81 |
F | Std. | 3-9/32 | 2-31/32 | 4 | 2-3/32 | 500-1355 | 15.38 |
F | 2″ sq.* | 3-9/32 | 2-31/32 | 4 | 2-3/32 | 500-1531 | 17.09 |
F | Rect.** | 3-9/32 | 2-31/32 | 4 | 2-3/32 | 500-1530 | 17.09 |
G | Std. | 3-25/32 | 4-11/32 | 5-5/32 | 2-3/32 | 500-1359 | 20.73 |
G | 2″ sq.* | 3-25/32 | 4-11/32 | 5-5/32 | 2-3/32 | 500-1426 | 22.05 |
G | Rect.** | 3-25/32 | 4-11/32 | 5-5/32 | 2-3/32 | 500-1528 | 22.05 |
H | Std. | 4-7/16 | 4-11/32 | 5-5/32 | 2-3/32 | 500-1360 | 20.73 |
H | Rect.** | 4-7/16 | 4-11/32 | 5-5/32 | 2-3/32 | 500-1452 | 22.05 |
J | Std. | 5-11/32 | 4-23/32 | 5-13/16 | 2-3/32 | 500-1375 | 26.63 |
J | Rect.** | 5-11/32 | 4-23/32 | 5-13/16 | 2-3/32 | 500-1431 | 28.95 |
K | Std. | 6-5/8 | 5-23/32 | 6-5/8 | 2-3/32 | 500-1534 | 31.53 |
K | Rect.** | 6-5/8 | 5-23/32 | 6-5/8 | 2-3/32 | 500-1535 | 40.09 |
*Wiedeman® is a registered trademark and it is not affiliated in any way with Acrotech, Inc.
